MuxLab Audio Distribution

Digital Coax Audio Balun



Product Code: 500020

The Digital Coax Audio Balun allows a digital coax audio source to be connected up to 180m away from a digital audio decoder/amplifier via single Cat5e/6. Used in pairs, the Digital Coax Audio Balun allows a source such as a BluRay or satellite receiver to be connected to a home theatre system in a point- to-point scenario. The Digital Audio Balun connects directly to the digital audio equipment and features screw terminals and built-in cable strain relief for ease of installation and reliable connectivity.



  • Supports Dolby® Digital, DTS® digital audio up to 180m via Cat5e/6

  • Cable strain relief

  • Compact design

  • Lifetime warranty

​

Tariff Code: 8517620000

Audio-Video Distribution Hub



Product Code: 500200, 500201

The Audio-Video Distribution Hub allows up to two baseband composite or one S-video signals and up to two audio signals to be distributed to up to eight (8) destinations via twisted pair (UTP) cable for more cost-effective and versatile cabling. When used in conjunction with MuxLab’s baluns, the Audio-Video Hub provides a smart, fast and cost-effective means of connecting multiple displays to a single source. Ideal for classrooms, lecture halls, auditoriums, retail kiosks, video information displays, on-line advertising, trade shows, hotel and convention centres, airline information systems. Euro version model 500201.



  • Can distribute audio-video to eight (8) displays

  • Cascadable up to 64 displays via Looping Output

  • Composite video up to 2200 feet (670m) in colour via Cat 5 twisted pair

  • S-Video up to 1000 feet (300m) in colour via Cat 5 twisted pair

  • Supports up to 2 video and 2 audio channels

  • Pin-compatible with baluns 500000, 500009, 500001, 500012, 500016, 500017

  • Supports NTSC and PAL

  • Euro version model 500201

​

Tariff Code: 8543700000

MonoPro XLR Balun



Product Code: 500025/500026

The MuxLab MonoPro™ XLR (500025, 500026) allows a standard AES analogue or digital audio channel to be connected via Cat5e/6 for the professional audio environment. The product features heavy duty cable strain relief for rugged environments such as rental and staging and is available with male (500025) or female (500026) locking XLR3 connectors for added cabling versatility. May also be used as a solderless connection point for standard shielded audio cable.



  • Line analogue audio up to 1.5km via Cat5e/6

  • Digital audio up to 426m via Cat5e/6

  • Wires terminate inside balun

  • Locking XLR3 connector

  • Heavy-duty cable strain relief

  • Supports UTP or STP

​

Tariff Code: 8517620000

Stereo Audio Balun

Product Code: 500027/500030

The Stereo Audio Balun allows unbalanced line level stereo analogue audio to be transmitted via Cat5e/6 in a point-to-point connection. The products are designed for audio equipment equipped with either a 2x RCA (500027), or 3.5mm line-level stereo input/output (500030) where mid-range audio frequency response is required.



  • Cost-efficient cabling

  • Up to 1.5km via Cat5e/6

  • Built-in 2x RCA stereo plug lead (500027)

  • Built-in 3.5mm stereo plug lead (500030)

  • Quicker moves, adds and changes Compact design

​

Tariff Code: 8517620000

Stereo Hi-Fi Balun

Product Code: 500028

The Stereo Hi-Fi Balun allows unbalanced line level stereo analogue audio to be transmitted via Cat5e/6 in a point-to-point connection. The product is designed for audio applications where full range, Hi-Fi audio frequency response is required. Used in pairs, the Stereo Hi-Fi Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment.



  • 20Hz to 20KHz bandwidth

  • Cost-efficient cabling up to 1km via Cat5e/6

  • Colour coded RCA cable leads

  • Quicker moves, adds and changes

​

Tariff Code: 8517620000

Stereo Hi-Fi Balun

Product Code: 500028-F

The MuxLab 500028-F Stereo Hi-Fi Balun  allows unbalanced line level stereo audio to be transmitted up to 5,000’ (1,524 m) via an unshielded copper twisted pair (UTP) in a point-to-point connection. This balun is used in pairs and is designed for high fidelity applications where full audio bandwidth (20 Hz to 20 kHz) is required. This stereo hi-fi balun eliminates the need for costly and bulky audio cables, allowing audio equipment to be connected or moved within a structured cabling environment.



  • Applications include audio distribution, high-fidelity sound systems, and custom residential audio systems

​

Tariff Code: 8517620000

Stereo Hi-Fi Wall Balun

Product Code: 500028-WP-UK

The Stereo Hi-Fi Wall Balun (500028-WP-UK) allows unbalanced line level stereo analogue audio to be transmitted via Cat5e/6 in a point-to-point connection. The product is designed for audio applications where full-range, Hi-Fi audio frequency response is required. Used in pairs, the Stereo Hi-Fi Wall balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment.



  • 20Hz to 20KHz bandwidth

  • Cost-efficient cabling

  • Up to 1km via Cat5e/6

  • Quicker moves, adds and changes

  • Compatible with 500028, 500028-F, 500044, 500210 & 500219

​

Tariff Code: 8517620000

Digital Audio Extender

Product Code: 500086

The Digital Audio Extender allows one (1) digital audio source signal: either Coax (S/PDIF) or Optical (TOSLINK) to be connected to the receiver outputting Coax and Optical to up to distances of 150m in a point-to-point configuration. The Extender supports most standards to transmit two channels of uncompressed lossless PCM audio or compressed 5.1/7.1 surround sound, such as Dolby Digital Plus or DTS-HD High Resolution Audio (multichannel digital audio Dolby Digital® 5.1, DTS, and Dolby® True HD).



  • Extend digital Optical audio (TOSLINK) or digital Coax audio to 150m over single Cat5e/6

  • Can be used to convert optical link (TOSLINK) to electric link (COAX) or reverse

  • Power only needed on one side as other side is powered by PoL

​

Tariff Code: 8543700000

Quad Audio Balun

Product Code: 500033/500033-WP-UK

The Quad Audio Balun allows up to four (4) analogue line audio signals to be transmitted via Cat5e/6 cable in a point-to-point connection. Used in pairs, the Quad Audio Balun allows up to four (4) RCA audio cables to be replaced by one (1) Cat5e/6 cable. The Quad Audio Balun also works in conjunction with other MuxLab analogue audio baluns.



  • Cost-efficient cabling – save up to four (4)cables

  • 20Hz to 20KHz bandwidth for high fidelity

  • Analogue audio up to 1km via Cat5e/6

  • Compact design for neater wiring

​

Tariff Code: 8517620000

Quad Audio Wall Balun

Product Code: 500033-WP-UK

The MuxLab Quad Audio Wall-Plate Balun (500028-WP-UK) allows up to four (4) individual RCA, or two (2) stereo RCA line-level audio signals to be transmitted via single Cat5e/6 cable in a point-to-point connection to distances of up to 3,250ft / 1km. Designed to be compatible with UK standard 86 x 86mm back boxes and EU 50 x 50mm face plate openings. Used in pairs, the Quad Audio Balun is compatible with the MuxLab 500033 (where a wall plate is not required) and also works in conjunction with other MuxLab stereo audio baluns such as the 500019 (single RCA) or the 500028 (dual RCA).



  • Extend stereo Hi-Fi audio signal distances up to 3,250ft / 1km via single Cat5e/6

  • Frequency response: 20Hz to 20kHz (over distance range)

  • Color coded RCA connectors (female sockets)

  • Dimensions: 3.39" x 3.39" x 1.42" (86 x 86 x 36mm)

  • Backbox requirements: minimum 1.6" (40mm) depth

  • Weight: 4.1oz / 0.115kg

​

Tariff Code: 8517620000

8x8 Cat5e/6 Line Level Audio Matrix Switch

Product Code: 500210

The MuxLab 8x8 Cat 5e/6 Line Level Audio Matrix Switch supports audio switching between multiple audio sources and distributes via single Cat 5e/6 cable to remote zones up to a distance of 1km away. The Cat5e/6 Line Level Audio Matrix Switch provides full non-blocking port switching and distribution between multiple stereo line level analogue audio sources. The Audio Matrix Switch uses RJ45 connectors and works in conjunction with MuxLab’s stereo audio balun (500019, 500027, 500028 and 500030) and digital audio balun (500020). The product provides port buffering, unity gain compensation and ground loop isolation. The Switch can be managed via push-button, IR, RS232, Ethernet, Web Server, or 3rd party control software.



  • Compatible with MuxLab’s stereo audio balun (500019, 500027, 500028 and 500030)

  • Compatible with MuxLab’s digital audio balun (500020)

  • RCA audio jack for input, RJ45 jack for output to preserve investment in structured cabling system

  • Port buffering • Volume control

  • Non-blocking switching and distribution

  • Ground loop isolation

  • Management via push-button, IR, RS232, Ethernet, Web Server, or 3rd party software

​

Tariff Code: 8543700000

Audio Zone Amplifier

Product Code: 500216

The MuxLab Audio Zone Amplifier is a Class D digital amplifier that allows one (1) analogue source to feed a pair of 20W per channel stereo speakers. The Audio Zone Amplifier features two (2) stereo analogue audio lines & 1 MIC inputs, and two (2) 20W, 4-ohm speaker outputs or one (1) 40W, 8-ohm speaker output.



  • Two Analogue Stereo Audio Inputs (3.5mm jack) and one MIC input (Phoenix)

  • 20W per channel into 4-ohm

  • Cascadable to further amplifiers

  • Compatible with MuxLab Hi-Fi Audio Baluns and Audio Matrix Switch

  • Volume control, Ground loop isolation

  • Controllable via pushbuttons, RS232 and optional IR

​

Tariff Code: 8543700000

Analogue Audio Balun Amplifier

Product Code: 500219

The MuxLab Analogue Audio Balun Amplifier allows one (1) analogue source using the MuxLab Audio Balun range (500028) or MuxLab Audio Matrix Switch (500210) to feed a 30W per channel stereo Class D amplifier using single Cat5e/6 cable.



  • RJ45 jack for input and binding posts for output

  • 30W per channel (PMPO) into 8 ohms

  • Compatible with MuxLab Stereo Hi-Fi Baluns and Audio Matrix Switch

  • Volume control, Ground loop isolation

  • Front display: volume and input level indication

​

Tariff Code: 8543700000

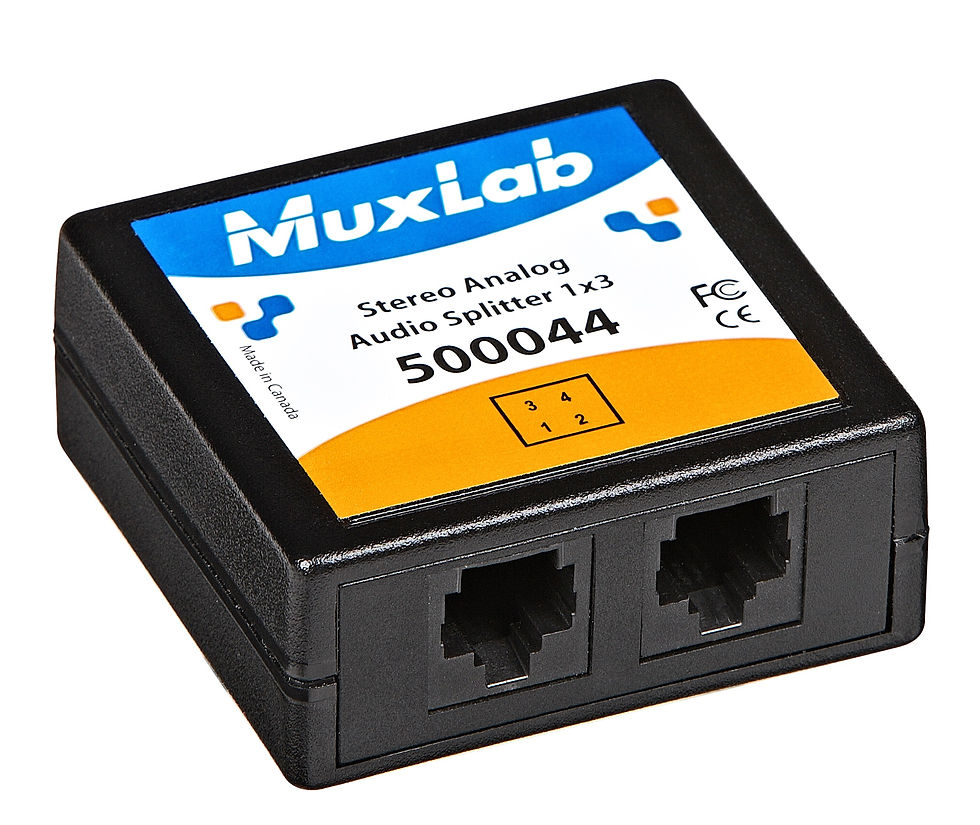

Stereo Analogue Audio Splitter 1x3

Product Code: 500044

The Analogue Stereo Audio Splitter allows one analog source using either the MuxLab Analogue Audio Balun (500028) or MuxLab Audio Matrix Switch (500210) to be connected passively to up to three receivers using MuxLab’s Analogue Audio Balun (500028) over CAT 5e/6 cabling.



Applications: Installation of multiple audio receivers using MuxLab’s Audio Balun HiFi, Audio Matrix and Balun Amplifier, Audio distribution for PA systems, Home Audio, Digital signage, podium systems.



  • Easy installation for one or two additional receivers

  • No need for splice or punch block

  • Use standard Cat5/5e/6 cable

  • Splits the incoming Analog Audio channel to three (3) Analog Audio channels

  • Analogue Audio input (RJ45)

  • Analogue Audio outputs (3 x RJ45)

  • Compatible with all other MuxLab Analogue Audio baluns, matrix and receiver balun

​

Tariff Code: 8517620000

Audio Zone Amplifier 100W

Product Code: 500217

The MuxLab Audio Zone Amplifier 100W is a Class D amplifier which allows analog or digital sources to feed a pair of 50W per channel speakers. When set in Bridge mode and paired with the MuxLab 70V Transformer unit (500755-70V), the system is compatible with distributed 70V speaker systems over longer distances and supporting daisy chain configurations. The device may be controlled locally via pushbuttons and a knob, and remotely via RS232, IR and an IP webserver interface.



The Audio Zone Amplifier features two analog 2CH audio inputs (RCA & 3.5mm) & one (1) PCM digital optical input (TosLink), along with two 50W 8Ω speaker outputs or one 100W 4Ω speaker output (terminal block).



  • Two analog 2CH audio Inputs and one digital optical input

  • Supports 2x50 Watts into 8Ω, and 1x100 Watts (Bridge mode) into 4Ω

  • Cascadable allowing for chaining amplifiers

  • Compatible with MuxLab Hi-Fi Audio Baluns and Audio Matrix Switch (500210)

  • Compatible with MuxLab 70V transformer (500755-70V) to allow for longer distance connections and chaining of 70V speaker systems

  • Volume, Bass and Treble control, with mute

  • Controllable via pushbuttons, RS232, IR and IP webserver interface

​

Tariff Code: 8543700000
